  • Features Include:

    • Pressure adjustable from 100-300 PSI
    • Will self prime up to 5ft
    • 1/4" female push fit inlet & outlet port
    • Motor turns 1750 RPM @ 12 volts
    • 13.5 amperage draw
    • Built-in bypass valve
    • Built-in thermal protection
    • Built-in anti reverse check valve
    • Built-in heat sink on back of motor
    • Heavy duty dual EPDM pump seals
    • Pressure adjustable from 100-300 PSI
    • Can run dry up to 1 hour without damage
    • 100% methanol compatible
    • Tested prior to shipping
    • Made in the USA
    • Weight 5.2 lbs

    Flow & Horsepower Ratings @ 13.5 Volts:

    • 1.3 gallons per minute open flow
    • 115 liters per hour @ 200 PSI
    • 30 gallons per hour @ 200 PSI
    • 1890 cubic centimeters @ 200 PSI
    • Supports up to 1700-2200 horsepower - 100% water mix
    • Supports up to 1000-1300 horsepower - 50/50 water methanol mix
    • Supports up to 800-1100 horsepower - 100% methanol mix

    Special Notes:

    • Do not use with petroleum products (E85, E98, gasoline, diesel, etc)
    • Use 12 gauge wire for power and ground
    • Does not include pump fittings. Pump fittings are available for sale separately
    • Pumps come preset at 200 PSI
    • Running the pump over 250 PSI is not advised and will shorten pumps life
    • Pump may be mounted vertical or horizontal

Write a review

Please login or register to review

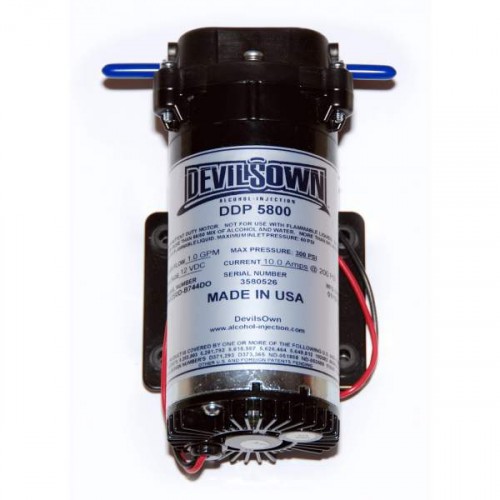

300psi pump 30gph (Push fit head)

  • Product Code:PUMP_300PSIPF
  • Availability:In Stock
  • £170.79
