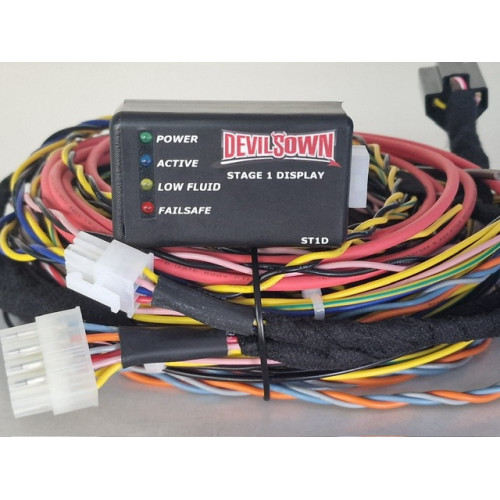

The DevilsOwn™ Stage 1 Methanol/Alcohol Injection System was designed to make the system the easiest on the market to install. To accomplish this at the centre of the design is a custom 1-piece harness that has all the standard options and upgrade options available already pre-wired to make it as easy as possible with near to no design work required.

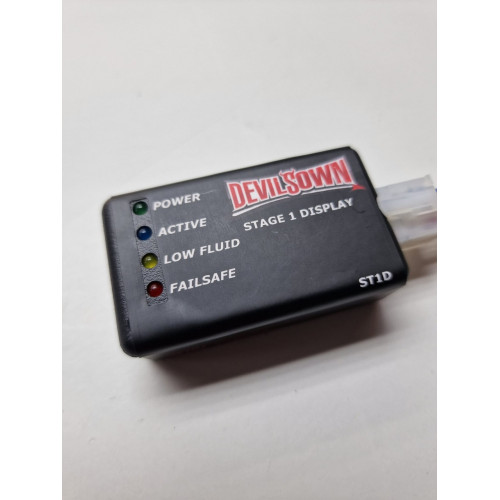

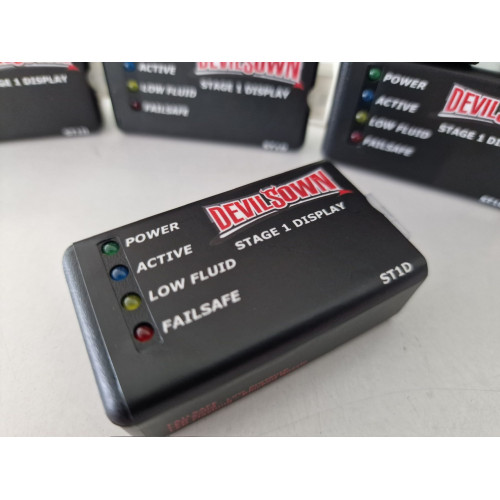

This Stage 1 Display allowing the driver to be informed of system activation, low pressure and low level faults during use & integrates with our failsafe if you are meth dependant to protect your engine.

This system also integrates a fluid level and system pressure monitoring unit for the detection and warning of low fluid levels and system pressure faults.

Features of the Stage 1 System Display and Harness:

• High Current Power Cable.
• Colour coded harness for easy installation.
• Contains inbuilt cables for:-
• Boost Switch
• Pressure SWitch
• Solenoid
• Level Indicator
• Failsafe
• Pre-wired relay.
• Ignition Connection
• Fit Switch to turn system on/off (upgrade option)

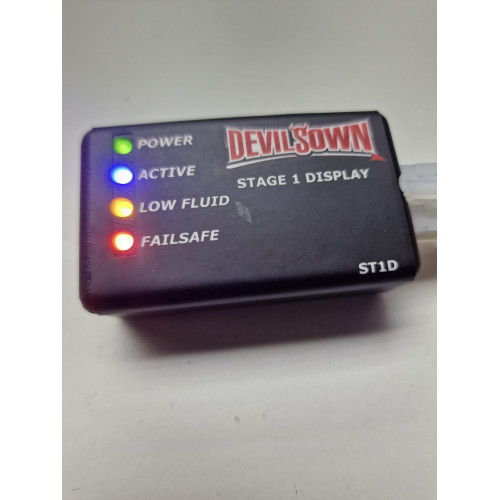

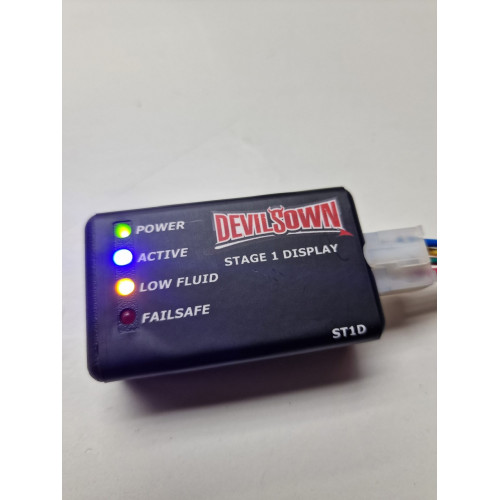

• Display
• Power On/Off LED.

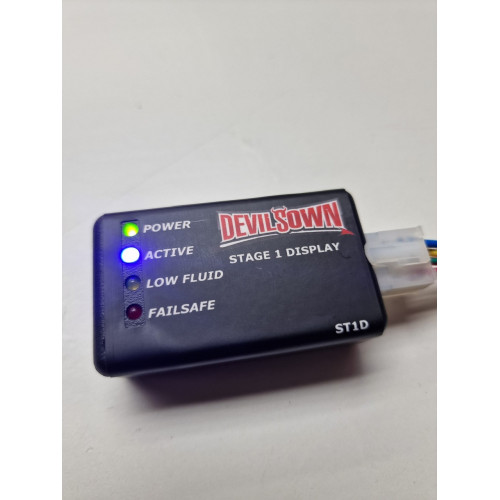

• System Activation LED - Let’s you know the pump/solenoid has been activated.
• Low Level LED

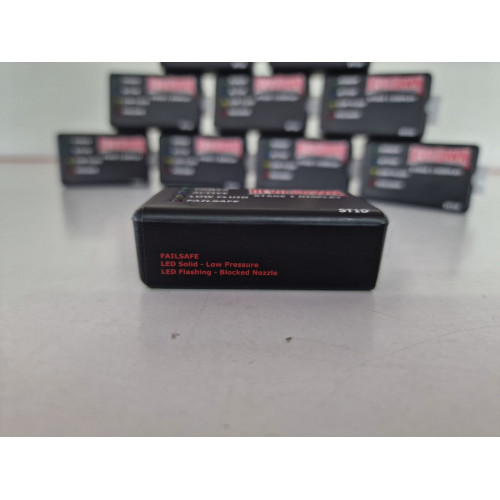

• Failsafe LED
• Solenoid Connections (upgrade option)
• Tank Fluid Level Monitoring (upgrade option)
• Passive in tank – Hole cut in tank required.
• Active external – No cutting required.
• System Fluid Pressure Monitoring (no failsafe) (upgrade option)
• Via Module Plugin and Pressure Sensor
• Failsafe Integration (FSR1)  Connection (upgrade option)
• Monitoring of Line Pressure activates output to cut boost should a fault occur.
• Controller
• Pressure Sensor
• Failsafe Relay Outputs

When fully installed the cables can be cut to suit installation and crimp the ends with the relevant connectors.

Circuit Diagram

Harness Lengths
