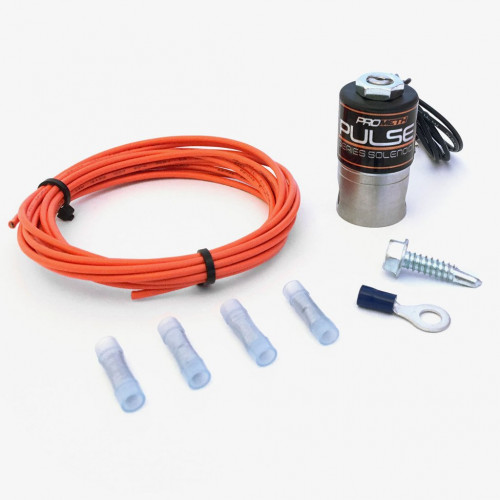

Our SV60 solenoids are made specifically for use with methanol fuel. What makes this solenoid special is its small size, high flow output. Features include a large .110" orifice capable of flowing over 60 GPH @ 200 PSI with a maximum pressure rating of 250 PSI. Compare against the competitors valves and see the difference for yourself.
Features Include:
- .110" orifice
- 250 psi max
- Hard Buna plunger
- 1/8 NPT female ports
- Normally closed position
- 16 gauge wire leads
- Flows 60 gph @ open flow
- Coil watts 25
- Class "H" coil rating
- Rated up to 355 degree's
- Amperage draw 2 amps
- Stainless steel valve body
- Steel powder coated coil housing
- Overall height 2.40"
- Valve body diameter 1.00"
- Coil housing diameter 1.10"
- 5 minutes of continuous use recommended
- 100% methanol compatible
- Made in the USA
Special Notes:
- For use with methanol and water
- Can not be used with E85
- Can be used with progressive controller and safely ran at 15-20 hertz @ 200 PSI. You may increase the hertz to 25 with lower pump pressure of 120 psi
300psi SV60 Solenoid
- Product Code:Pulsesol
- Availability:In Stock
-
£106.66
